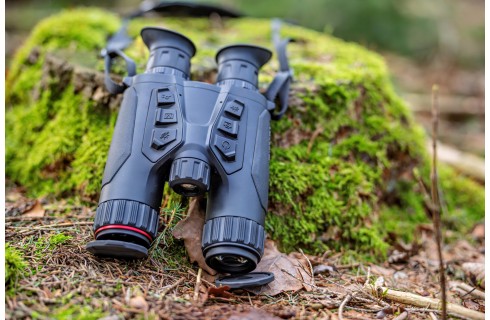

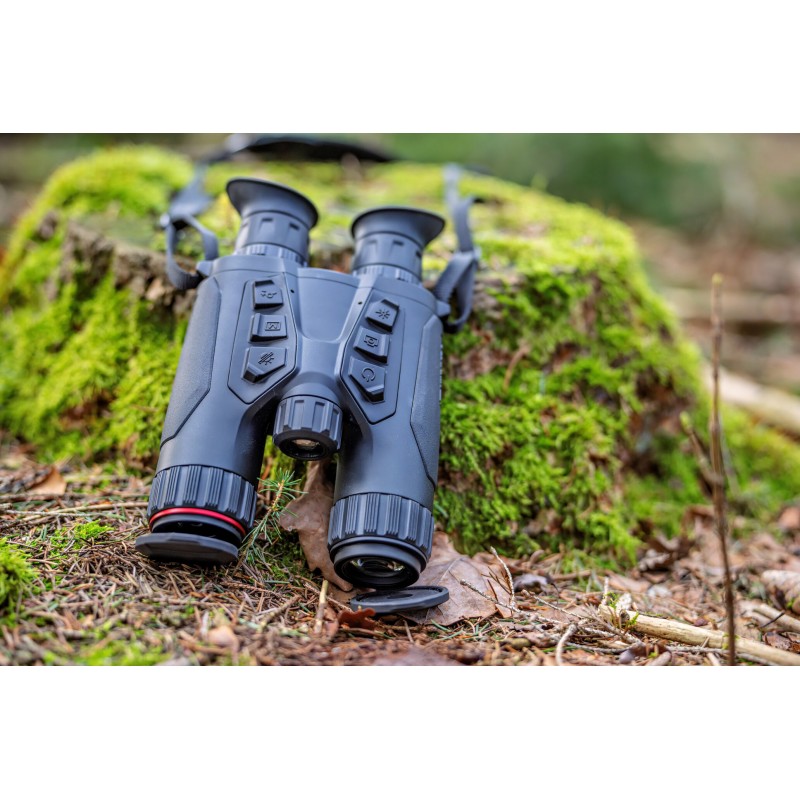

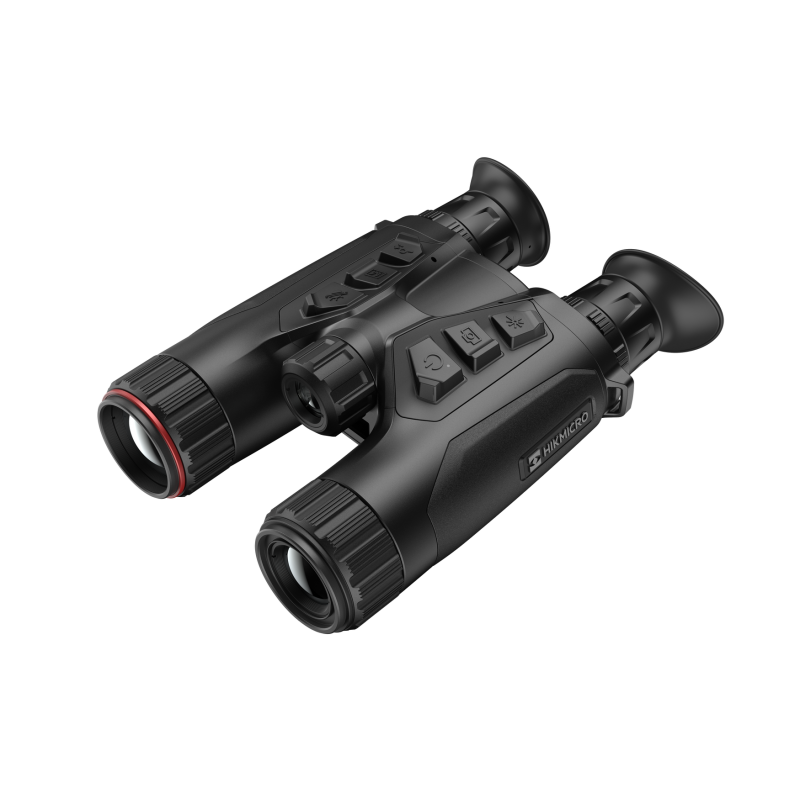

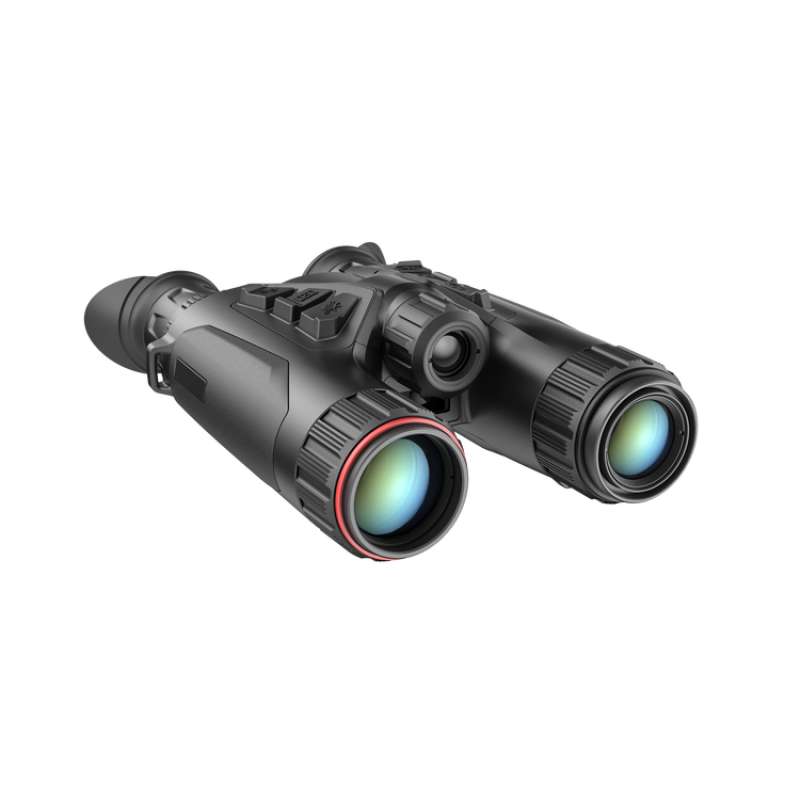

Hikmicro Habrok 4K HE25LN Digital and Thermal Binocular

Description

Habrok 4K is a powerful and innovative digital and thermal binocular designed especially for daytime and twilight use. The 4K UHD digital resolution, 60mm lens with 4x digital zoom deliver unparalleled clarity for details. With additional LRF and IR emitter, this All-in-One device can equip you well no matter in forest or field scenarios.

The high-tech Full-Color 4K UHD detector of HABROK 4K brings crystal clarity during daytime, even at twilight, providing the extra few minutes you need.
HABROK 4K delivers the highest level of detail and reproduces colors with natural fidelity.

Instead of a fixed magnification by optical binocular, the 5.5x-22x magnification with a 60mm focal length means you can zoom HABROK 4K in and out freely from catching whole surroundings to recognizing the smallest details, within 150m during daytime.

By minimizing unwanted movements and vibrations, the revolutionary Image Stabilization Algorithm ensures HABROK 4K presents steady images and avoids dazzling or blurring your vision, especially in low-light conditions. Just zoom in and immerse yourself in rich image details. *EIS only works at 22x

The Built-in IR illuminator brings classic black/white images at night. With optional 850nm or 940nm wavelength and 3-level adjustable emitter power, users are able to see extra miles with superior clarity in total darkness.

As a Multi-Spectrum Binocular, HABROK 4K’s thermal camera provides the ability to see through animal’s camouflages and present the animal’s heat signal even when they are among bushes or leaves, enabling a quick scan and search efficiency in open wilds. In addition, with up to 640x512, 20mK thermal camera, HABROK 4K can capture both game and surroundings without details missing.

The integrated laser rangefinder in the HIKMICRO HABROK 4K determines the accurate distances up to a maximum of 1,000m with a ±1 meter accuracy.

One big joy of hunting trips is to record your fascinating and unpredicted adventures instantly. With HIKMICO HABROK 4K, you are able to create photos and videos of your exciting highlights with one press and save them in Local Album and SIGHT APP, no wonderful moments will missed.

By connecting HABROK 4K to SIGHT APP, all the captured thrilling images and videos can be synced on your phone and you can share them to social media easily. Also, a total control is granted, you can share the real-time screen with your hunting companions, and make main parameter setting at the same time.

The HABROK 4K Multi-spectrum Binocular comes with four 18650 replaceable and rechargeable batteries, providing 8-hour continuous operation on a single charge. Plus the auto screen-off function saves energy, so users can enjoy games without power anxiety.

Specifications

THERMAL MODE:

Image Sensor: VOx Uncooled Focal Plane Arrays

Max. Resolution: 256x192

Frame Rate: 50Hz

Pixel Interval: 12μm

Response Waveband: 8μm to 14μm

NETD: Less than 35 mK (@25°C),F#=1.0

Lens (Focal Length): 25mm, F1.0

Detection Range: 1200m

Focus Mode: Focus Ring

Field of View(H × V), Degrees / m @100m: 7.0° × 5.3° / 12.2m x 9.3m

Min. Focusing Distance: 3m

Magnification: 4.3x-17.2x (4x)

OPTICAL MODULE:

Image Sensor: 1/1.8'' Progressive Scan CMOS

Max. Resolution: 3840 x 2160

Field of View (H × V), Degrees/m @100 m: 6.9° x 4.1° / 12.0m × 7.2m

Focal Length: 60mm, F2.2

Min. Working Distance: 8m

IR Illuminator Wavelength: 940nm

Viewing Range at Night: 350m

Magnification: 5.5x - 22.0x（4x)

Focus Mode: Focus Ring

Smart IR: Yes

Replaceable IR Illuminator: No

IMAGE DISPLAY:

Display: 0.49 inch, OLED, 1920 ×1080

Contrast Adjustment: Yes

Brightness Adjustment: Yes

Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto

FFC (Flat Field Correction) Mode: Auto, Manual, External Correction

Exit Pupil: 8mm

Eye Relief: 15mm

Diopter (Range): -5D~+3D

Tone Adjustment: Cold, warm

Zoom Pro: Yes

GENERAL:

Protection Level: IP67

Weight: 795g without batteries

Dimension: 138mm × 68.2 mm × 223 mm (5.4" × 2.7" × 8.6")

Working Temperature: -30℃ ~ +55℃

Interpupillary Adjustment Range: 60 mm to 74 mm

Mounting Adapter: 1/4“-20-UNC

SYSTEM:

Record Video: Yes

Capture Snapshot: Yes

Hotspot: Yes

GPS: Yes

Digital Magnetic Compass: Yes

Standby Mode: Yes

Storage: Built-in EMMC (64 GB)

PIP: Yes

Hot Track: Yes

Audio Recording: Yes

Local Album: Yes

Battery Type: Replaceable and Rechargeable Li-ion Battery

Battery Operating Time: ≥8h (25 °C, with hotspot off)

Type-C Power Supply: 5V DC, 2 A
Support External Power Supply, Support Direct Charging

Safety Class for Laser: Class 1

Wavelength: 905nm

Max. Measuring Range: 1000m

Measurement Accuracy: ±1m

Min. Measuring Range: 10m

3 years on components and 10 years on the uncooled sensor 1 years on removable battery if applicable.
